VIS-P20MULTI27135NH-AI

Panoramic Security Coverage with AI Precision

Ultra-Wide Coverage with Smart AI — All from One Camera

The VIS‑P20MULTI27135NH‑AI is a powerful 20-megapixel panoramic security camera featuring four individually controlled 5MP lenses in a single rugged housing. This advanced AI-powered surveillance camera is ideal for wide-area monitoring — including parking lots, building perimeters, commercial campuses, and more. With smart human and vehicle detection, long-range IR night vision, and motorized zoom, it delivers unmatched visibility and real-time intelligence for today’s demanding security environments.

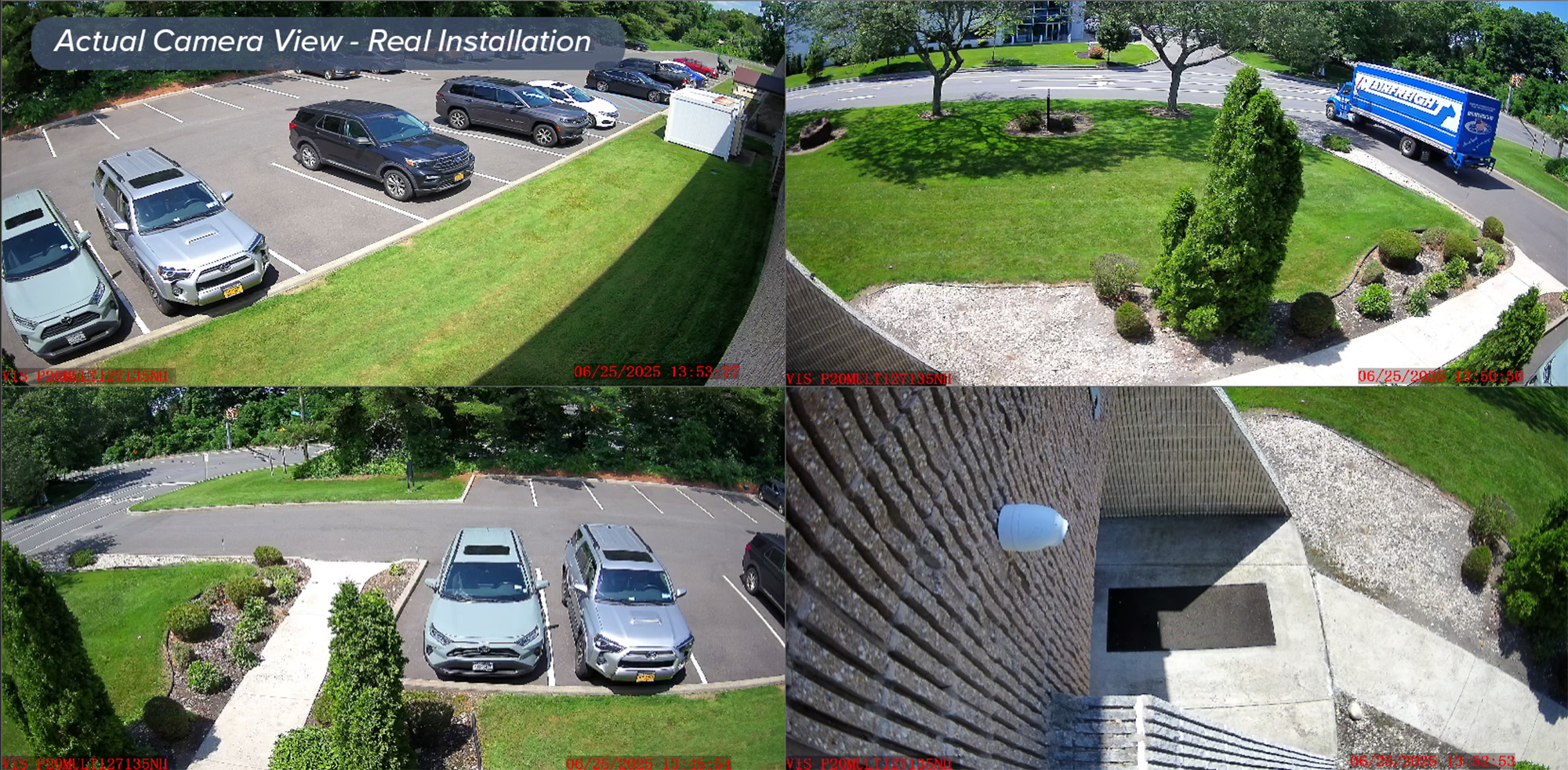

P20-Footage-truck-2000pix

See Everything. Miss Nothing.



The VIS‑P20MULTI27135NH‑AI isn’t just one camera — it’s four powerful 5MP cameras housed in a single, rugged unit. Together, they deliver a seamless 20MP panoramic view with AI analytics on each stream, giving you unmatched situational awareness.

Each lens operates as an individual camera, so when connected to an NVR, it occupies 4 channels total — one per lens. That’s how it captures so much coverage without gaps or blind spots.

🛠 Real-World Installation Example

Here’s how we’ve mounted the camera on our own building:

📍 Mounted on a corner wall, this setup gives two lenses a view along each side of the building, while the remaining lenses face outward toward parking and pedestrian areas.

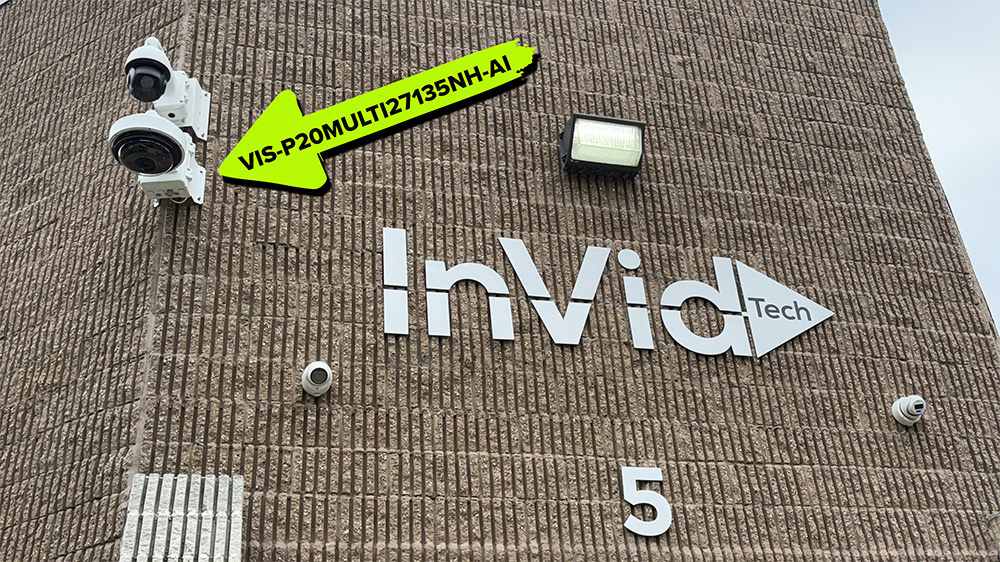

VIS-P20mounted

This is the VIS-P20MULTI27135NH-AI is mounted on our building.

View the video above from directly below the VIS‑P20MULTI27135NH‑AI — showing just how much area a single camera can cover. Four cameras, one housing, full panoramic coverage.

P20-valentino-arrows

Captured in real time by the VIS‑P20MULTI27135NH‑AI — one camera, four lenses, and full 360° awareness. Mike appears in three separate zones — all captured by the same camera, without repositioning or switching feeds.

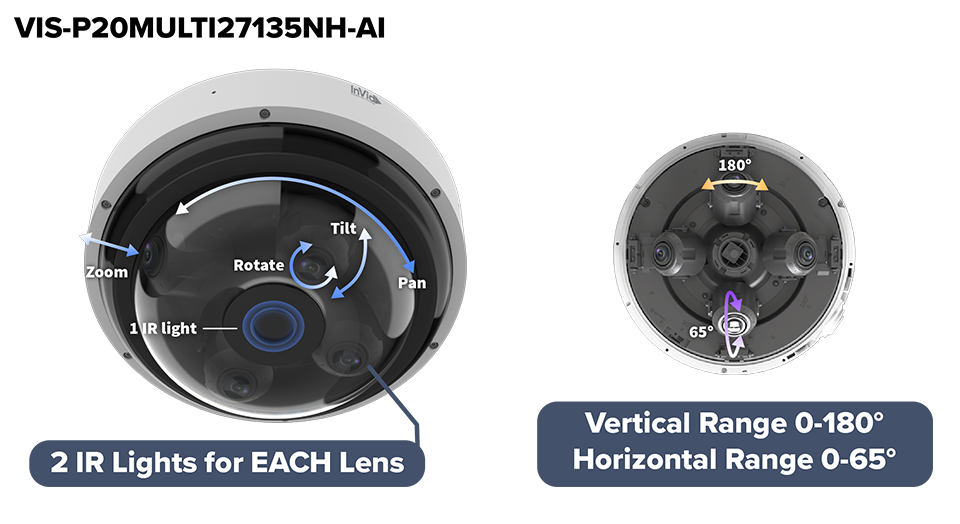

P20-Multiview-Ad-cameras

Flexible Lens Positioning with Motorized Zoom

The VIS‑P20MULTI27135NH‑AI features four independent 5MP lenses that can each be manually adjusted during installation for pan, tilt, and rotation, giving you the flexibility to customize your coverage area based on your environment.

Each lens includes a motorized varifocal lens (2.7–13.5mm), allowing you to remotely zoom and focus to fine-tune image clarity and field of view after the camera is mounted.

Plus, with two IR lights per lens, this multi-sensor camera delivers powerful infrared night vision, providing clear surveillance coverage in complete darkness.

  • Vertical adjustment range: 0°–180°

  • Horizontal adjustment range: 0°–65°

With adjustable positioning and motorized zoom on every lens, this AI panoramic surveillance camera gives you customized, high-resolution coverage with no blind spots — even in low-light conditions.

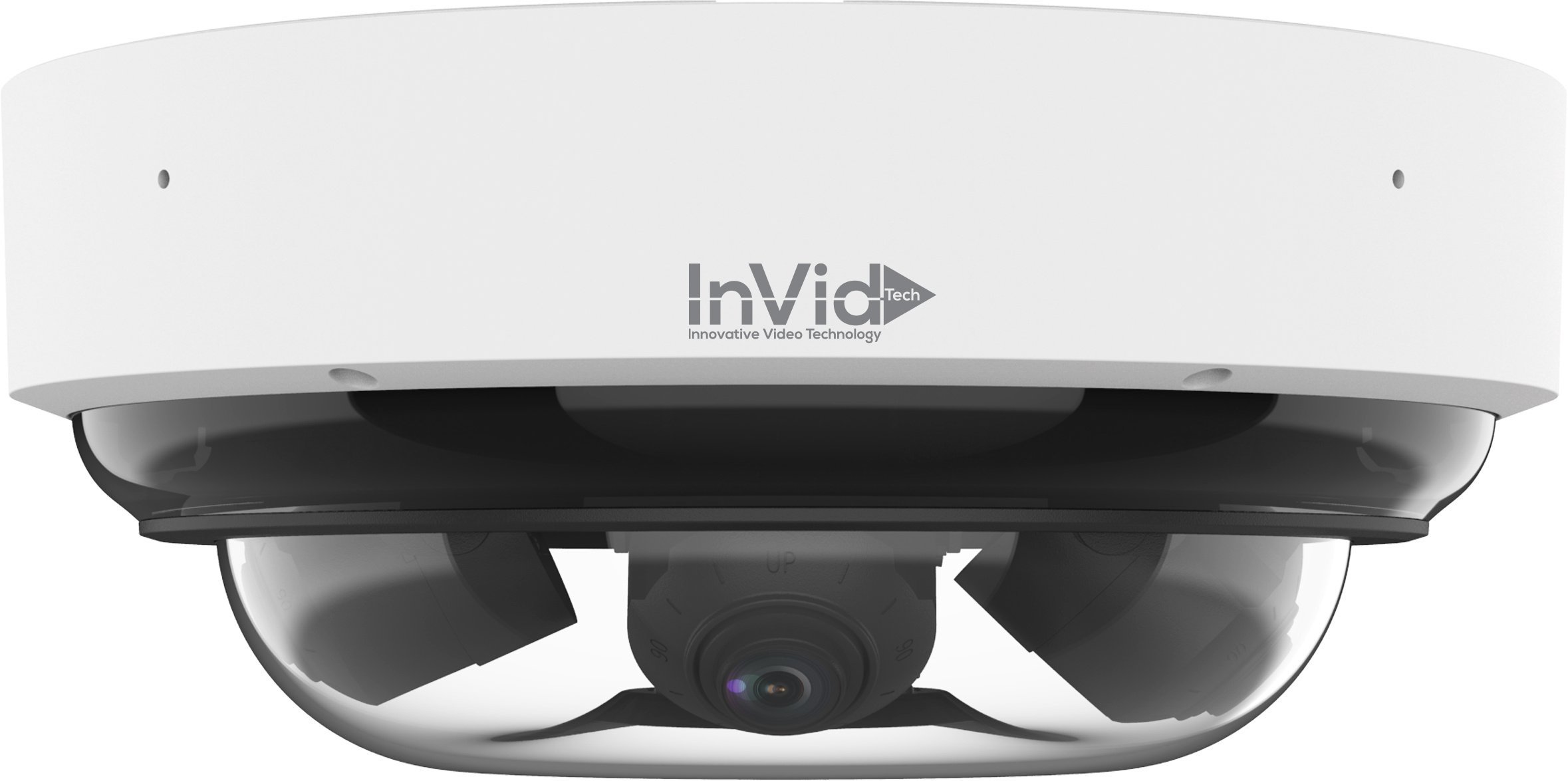

VIS-P20MULTI27135NH-AI

Product Overview

The VIS‑P20MULTI27135NH‑AI is a high-performance 20MP panoramic IP security camera designed for advanced perimeter and wide-area surveillance. Housed in a rugged outdoor-rated enclosure, this multi-sensor camera combines four 5MP lenses, each with manual pan/tilt and a motorized 2.7–13.5mm autofocus lens, delivering custom coverage without blind spots.

Built with True AI-powered analytics, this camera offers real-time human and vehicle classification, intrusion detection, and smart event filtering to dramatically reduce false alarms. With starlight illumination, 130dB True WDR, and an impressive 164 ft IR range, it captures crisp footage day or night — even in complex lighting conditions.

Engineered for flexibility, the VIS‑P20MULTI27135NH‑AI supports PoE++, 24VAC, and 24VDC, features dual built-in microphones, two-way audio support, and edge recording via an onboard 1TB microSD slot. It integrates seamlessly with ONVIF-compliant systems, smartphones, tablets, and free CMS software for complete control from anywhere.

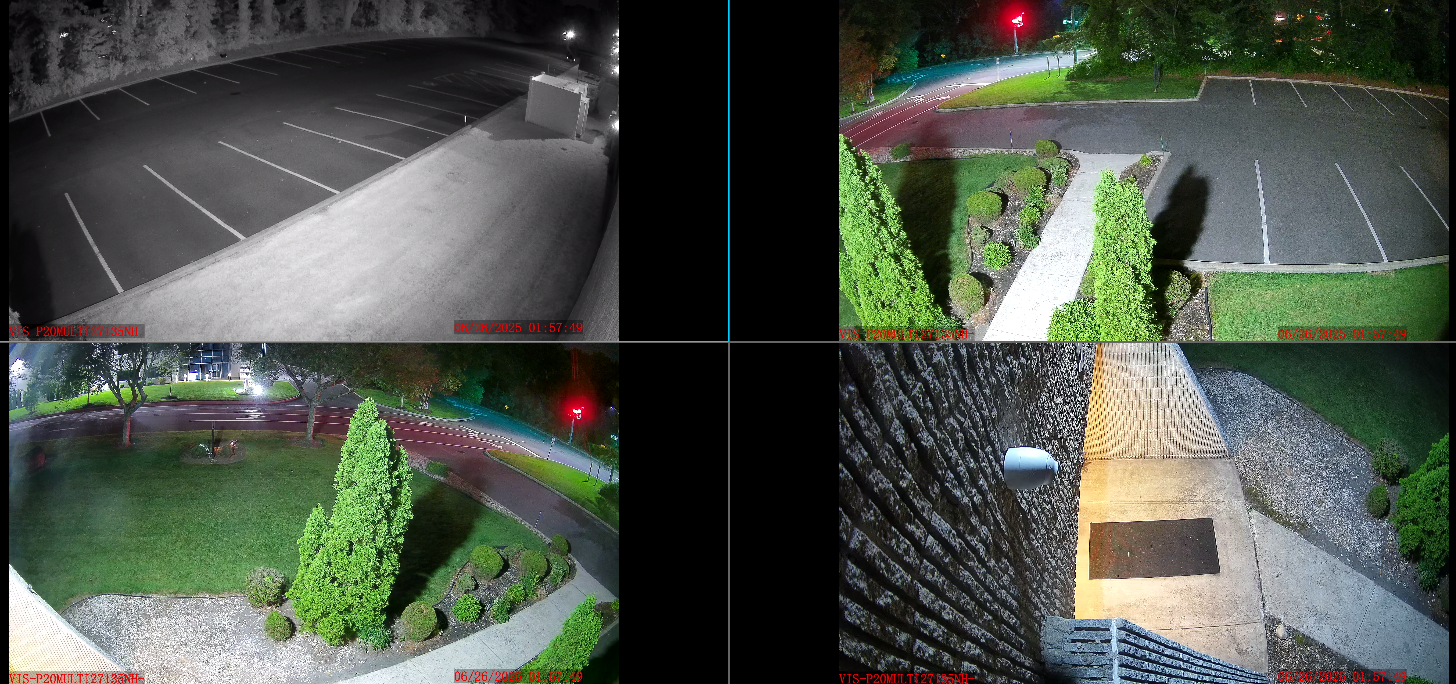

P20-night

Optimized for Night Surveillance

This view demonstrates the camera’s ability to adapt to changing light conditions — using infrared night vision to illuminate pitch-black areas, while starlight technology captures vivid color in low-light zones. Ideal for 24/7 monitoring without sacrificing clarity or detail.

  • AI-Powered Human & Vehicle Detection
    True AI-based analytics for accurate line-crossing and intrusion alerts, helping reduce false alarms and improve response time.
  • 20MP Panoramic Resolution
    Four synchronized 5MP sensors in one housing deliver seamless ultra-wide surveillance and 360° situational awareness.
  • Manual Pan/Tilt with Motorized Autofocus
    Lenses can be manually aimed (pan/tilt), then fine-tuned remotely via motorized zoom and focus (2.7–13.5mm varifocal).
  • Starlight Technology + 164 ft IR Range
    Delivers low-light color performance down to 0.002 lux and full night vision in complete darkness.
  • 130dB True Wide Dynamic Range (WDR)
    Maintains clear visibility in complex scenes with shadows, glare, or mixed lighting.
  • Multi-Format Compression
    Supports Ultra 265, H.265, H.264, and MJPEG for flexible storage and bandwidth optimization.
  • Edge Storage + Audio I/O
    Onboard microSD slot (up to 1TB), dual built-in microphones for ambient sound, and support for two-way audio.
  • Rugged Outdoor Design
    IP67-rated weatherproof housing for harsh environments, with support for 24VAC, 24VDC, or PoE++.
  • Smart Platform Integration
    Compatible with ONVIF, free iOS/Android apps, and CMS software for PC/Mac — manage your system from anywhere.
