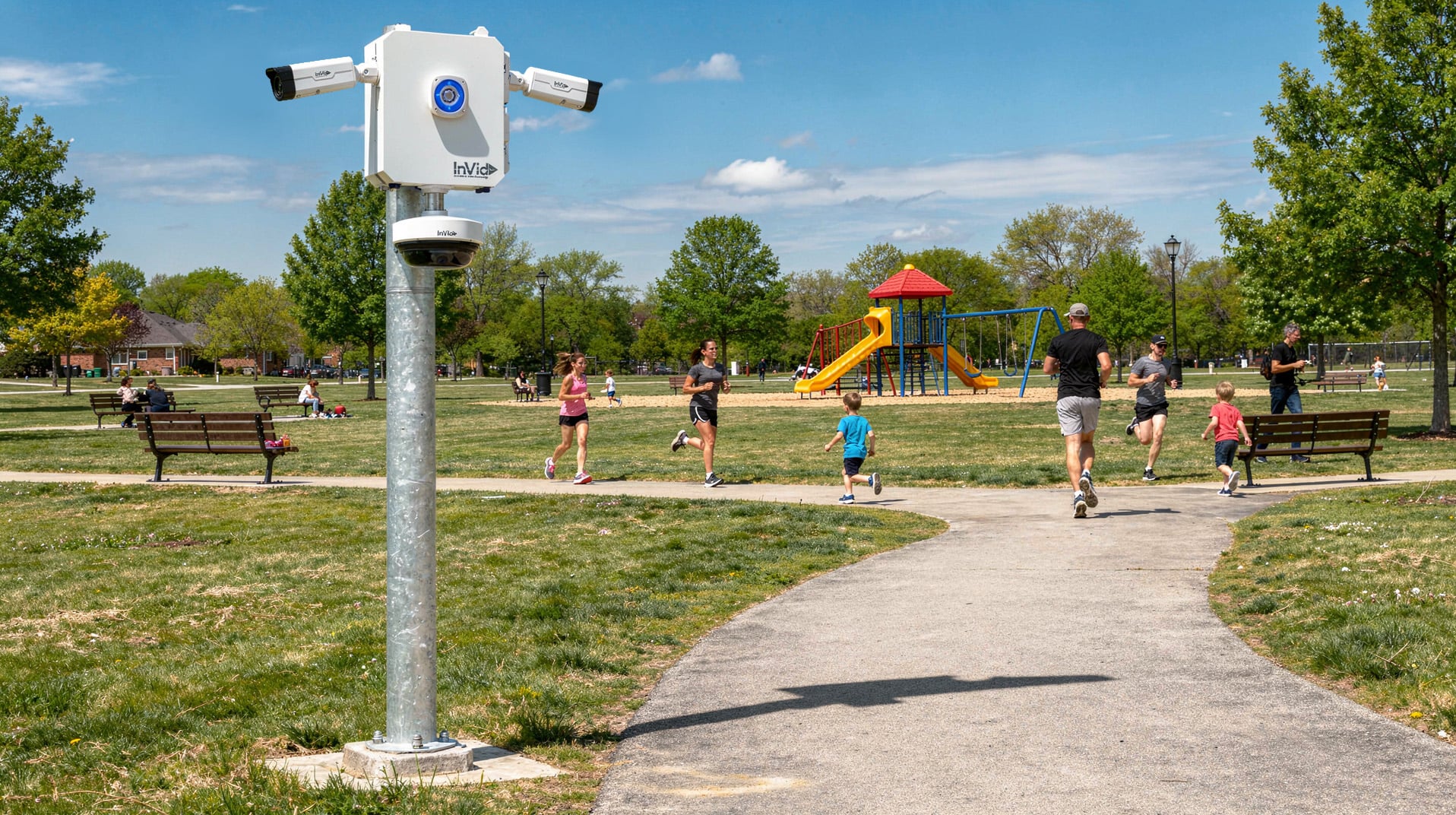

flux-ae0d8471-bee5-48f6-ac9a-9a9c269e120b-smallercameras

Defender Box Series: Four Rugged Enclosures, Endless Deployments

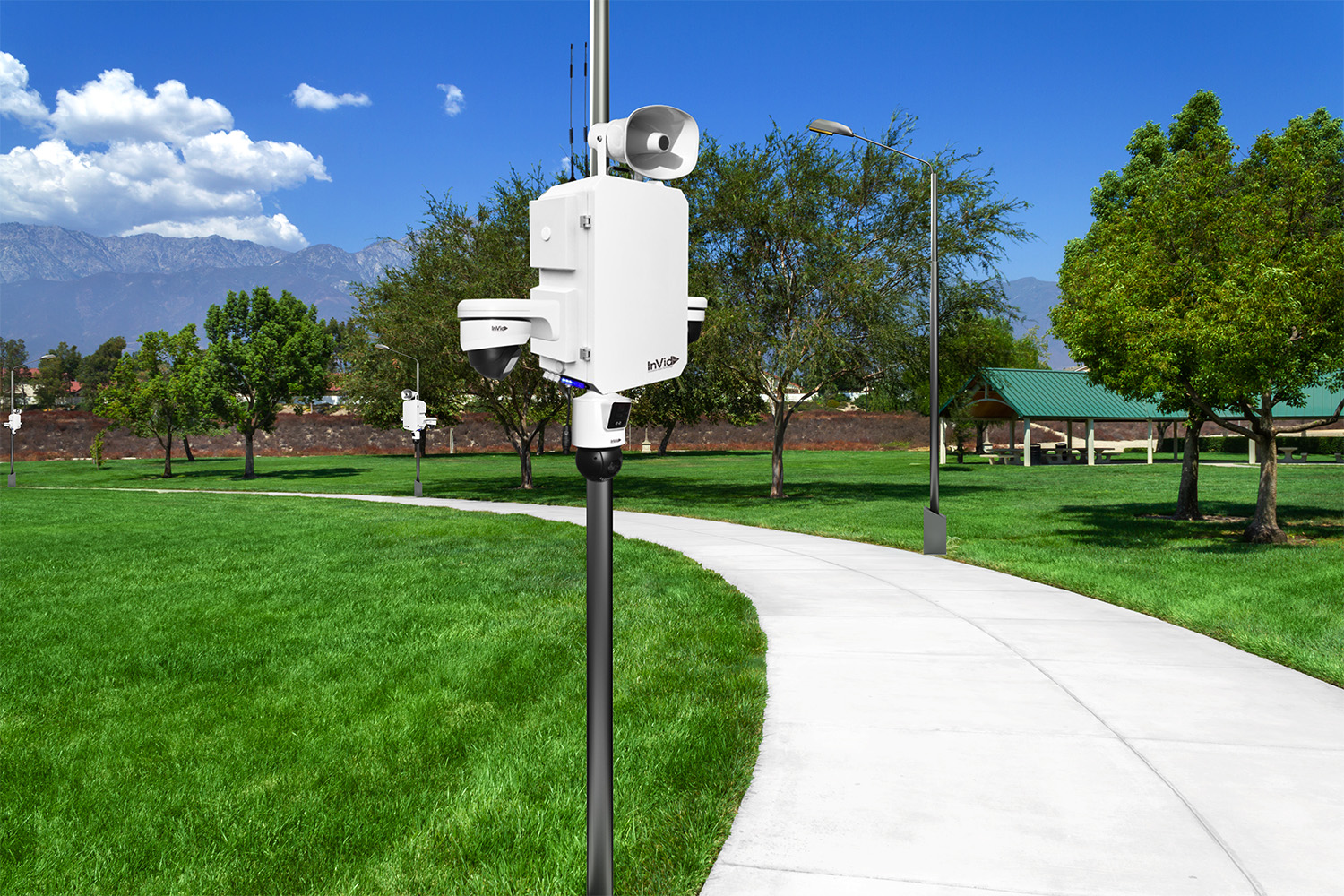

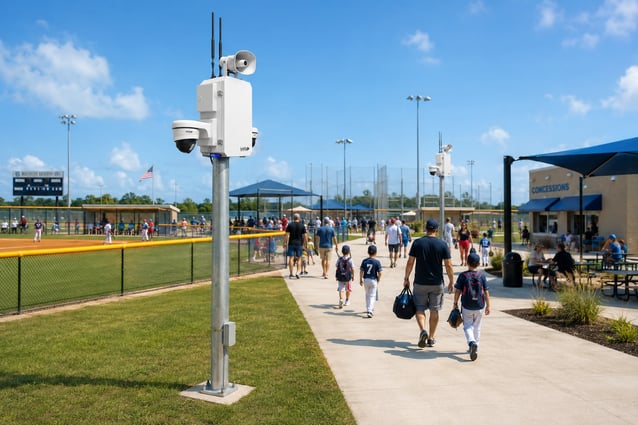

From youth ballfields and lakeside parks to active construction sites, the Defender Box brings surveillance, power, and connectivity wherever you need it. Available in four configurations, these sleek, weatherproof units integrate AC power, battery backup, PoE+, and thermal management into a single hardened package—so you can deploy fast, protect what matters, and keep operations running in any environment.

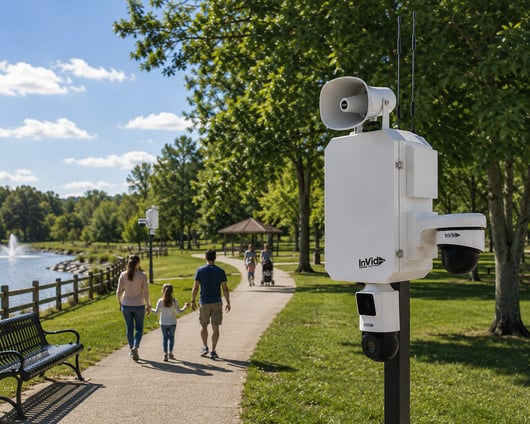

Park-DefenderBox
baseball2

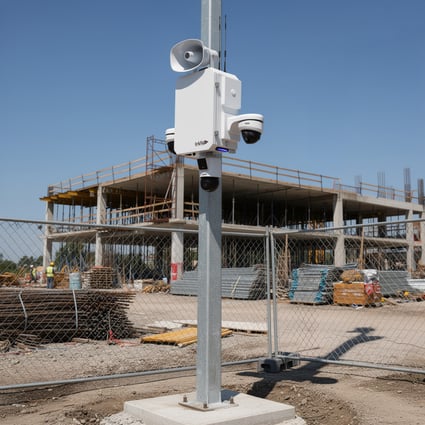

defenderbox-construction

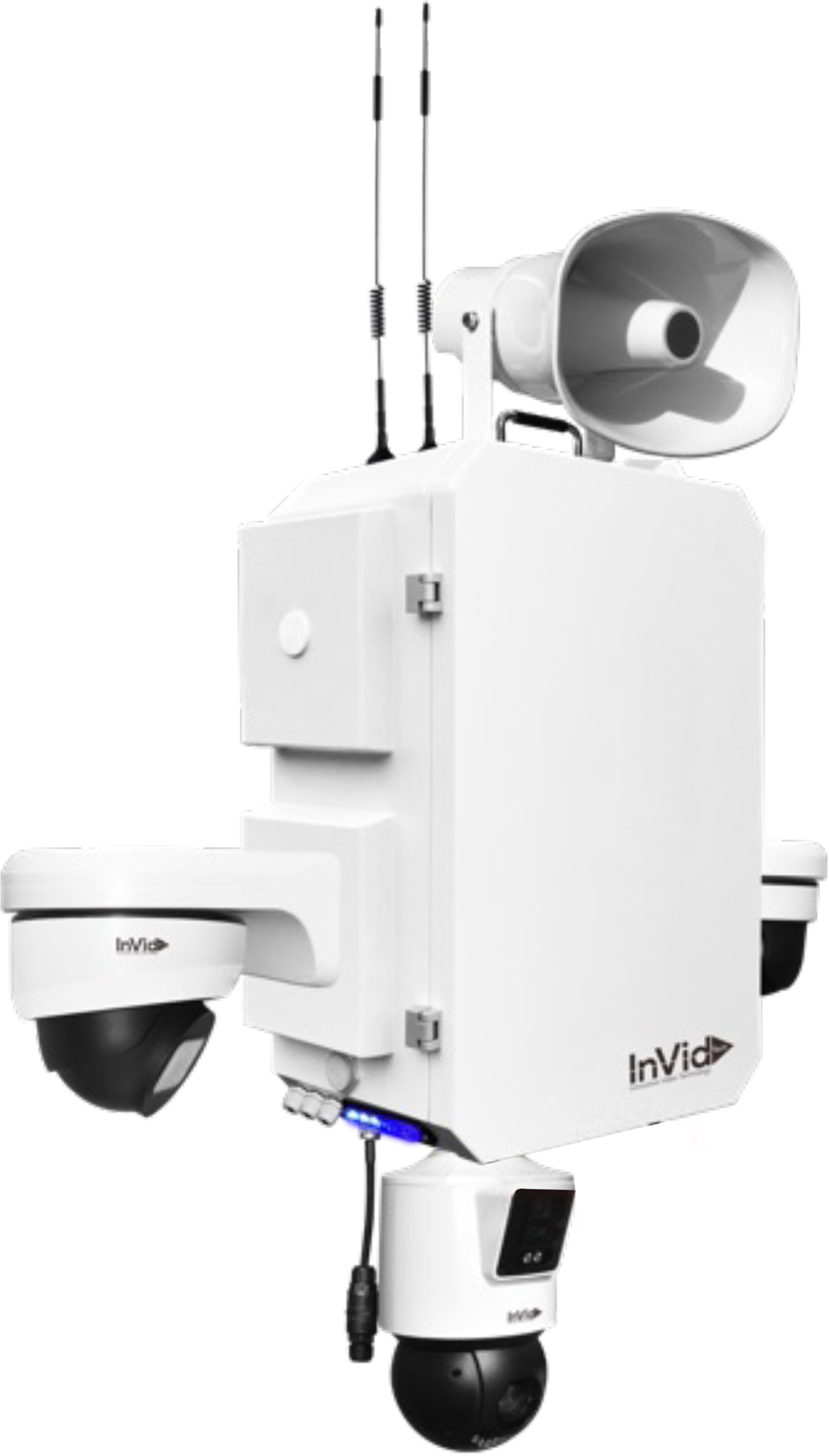

INVID‑DDPB: Defender Box – Rugged Weatherproof Enclosure

Overview:

The INVID‑DDPB is a durable, weatherproof enclosure engineered to centralize and protect surveillance and network equipment in outdoor settings. It holds components like recorders, routers, switches, power supplies, and more—all within a compact, hardened unit  .

Key Features & Application Highlights:

  • Robust Power Management – Equipped with a 120 W Power Control Module (PCM), dual DC inputs (DC24V/5A and DC12V/10A), and multiple DC outputs complemented by alarm-controlled channels. Ideal for powering surveillance and comms equipment reliably  .

  • Built‑in Protection & Cooling – Includes an air breaker, surge protector, temperature controller, UL‑listed DC12 V fans, and a MeanWell UL DC24 V/5 A power supply. This ensures both safe operations and thermal stability in variable environments  .

  • Weather‑secure Connectivity & Mounting – Features IP68 waterproof stainless connectors, NPT 3/4″ knockouts, antenna and horn speaker mounting points, plus both pole and wall mounting options and PTZ camera support  .

  • Built for the Field – A rugged housing (aluminum and steel) and a convenient stainless hand‑carrier make this unit perfect for dynamic deployments: construction zones, parking areas, temporary events, or solar surveillance installations.

Best Suited For:

Rapid deployment scenarios needing durable, all-in-one solutions to secure electronics and deliver reliable power, especially where portability and environmental resilience are critical.



INVID‑DDPB2: Enclosure Weatherproof Box with AC and Backup Battery

Overview:

The INVID‑DDPB2 builds on the Defender Box foundation with integrated AC power management, an industrial PoE+ switch, and a high-capacity lithium battery backup—ensuring continuous operation in isolated or off-grid environments  .

Key Features & Application Highlights:

  • Advanced Power & PoE Infrastructure – Includes a 360 W PCM, an 8‑channel industrial PoE+ switch delivering up to 240 W (30 W/port), dual cooling fans, plus AC and DC outputs for external accessories—powering a wide range of devices in remote setups  .

  • Resilient Backup Power – Features a built-in 24 V/40 Ah ternary lithium battery with heater and UPS signaling (switching to battery power seamlessly), ensuring equipment stays online during outages or in harsh climates  .

  • All‑in‑One Outdoor Package – Includes air breaker, waterproof AC wiring (IP68), mounting for antennas and horn speakers, a deterrence light with Sound AI PoE siren, and both pole/wall mounting with PTZ compatibility  .

  • Rugged & Compact – Aviation-grade aluminum alloy construction, operating temperatures ranging from –25 °C to 60 °C, and relatively modest footprint (~18.6″ x 20.9″ x 11.9″, 57.3 lbs with battery) make it suitable for permanent or semi-permanent outdoor surveillance hubs  .

Best Suited For:

Long-term or off-grid surveillance, emergency comms setups, or facilities with intermittent power availability—where PoE coverage, environmental control, and battery-backed operation are essential.

INVID‑DDPB3: AC Surveillance Power Enclosure with Automatic Source Switching and Remote Monitoring

Overview:

The INVID‑DDPB3 is a rugged, weatherproof surveillance power platform built to keep cameras running where reliable power doesn't exist. It pairs a Victron solar charging system with a high-capacity lithium battery and AC input, automatically switching between solar, grid, and battery power to maintain continuous uptime—on sunny days, cloudy stretches, or sites with no utility connection at all.



Key Features & Application Highlights:

      • Hybrid Solar-and-AC Power – Automatic source switching keeps equipment online across solar, grid, or battery with no manual intervention. A Victron charging system (SmartSolar MPPT 100/20, Cerbo GX, SmartShunt) regulates charging, while an integrated AC & Solar Control Module accepts 110–277VAC for direct battery charging with AC-fail alarm output.
      • Multi-Day Off-Grid Runtime – A high-capacity 24V 114Ah ternary lithium battery (~2,530Wh) with integrated heater delivers up to 4 days at 25W on solar and battery alone—supporting one PTZ and two turret cameras off-grid, with no camera-count limit when running on AC. Multi-voltage DC output (12V EPS, dual 12V, 24V, and 48V rails, plus IO-controlled load) supports flexible device loads.
      • Remote Visibility & Management – Full system status through the integrated Victron monitoring platform lets teams check health, diagnose issues, and power-cycle cameras remotely—cutting truck rolls and keeping deployments live. Solar input supports client-supplied panels up to 580W.
      • Built for the Field – Active thermal management (two UL-listed temperature-controlled fans and a cold-weather battery heater), IP68 weatherproof AC entry, antenna and horn-speaker mounting points, three pre-made camera mounting plates, and an expandable interior for routers, switches, and edge devices. Durable aluminum-and-stainless construction with an integrated hand carrier and pole/wall mounting (3.5″–9.8″ poles) with PTZ support.

Best Suited For:

Off-grid and infrastructure-limited sites—construction zones, parking lots, perimeters, and remote commercial areas—where there's no reliable utility power but cameras still need to stay online. Ideal where solar-plus-AC redundancy, multi-day battery runtime, and remote power management eliminate truck rolls and keep surveillance live far from the grid.

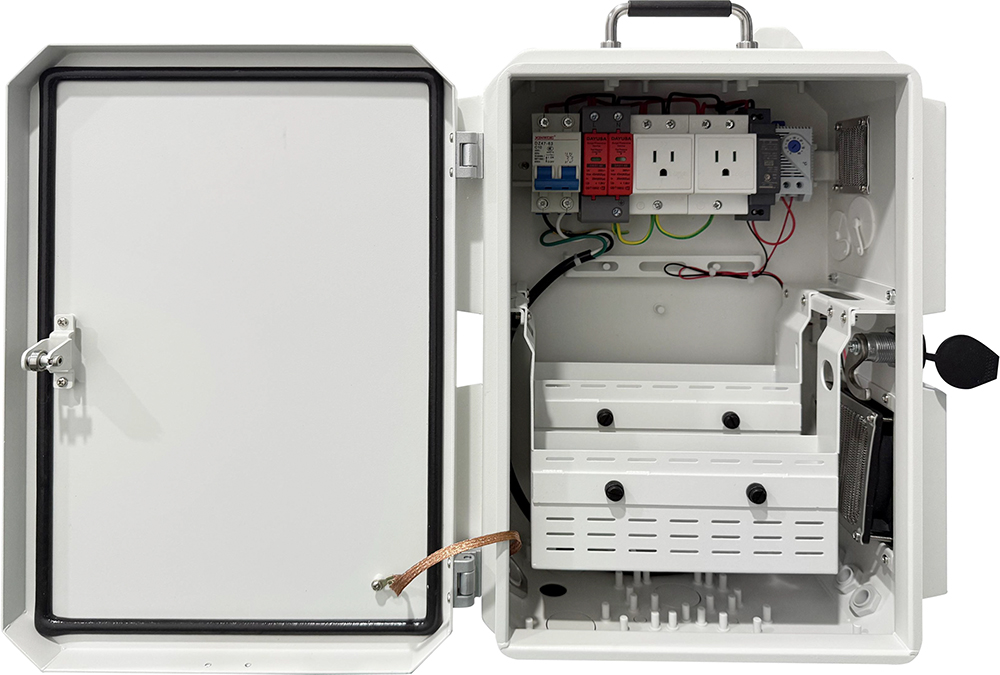

INVID‑DDPBMINI: Mini Enclosure Weatherproof Box

Key Features & Application Highlights:

  • Lightest and most compact unit in the Defender line — easy single-person install

  • Two built-in DIN rail power outlets for installer-supplied power supplies

  • Built-in air breaker, surge protector, and thermal fan management

  • Same mounting ecosystem as larger units — wall, pole, and PTZ pendant ready

  • Ideal when the integrator wants a clean weatherproof enclosure without a built-in power system

Best Suited For:

Smaller 1–2 camera locations where a compact, protected housing is all that’s needed.

VIS-8CHSMBOX: Smart Management Box


Key Features & Application Highlights:

  • Built-in 8-channel NVR — records up to 16MP; supports up to 16TB HDD or 4TB SSD

  • AI analytics on-board: face detection, vehicle detection, intrusion, people counting, and more

  • Remote management via InVid Vision Live app and Vision CMS — restart ports, receive alerts, monitor health

  • Automatic network restart — detects disconnections and power-cycles devices without a truck roll

  • Built-in 8-port PoE switch (IEEE 802.3at/af), 4G router slot, and warning light pre-wired

  • Camera mounting on all 4 sides; IP56 rated for permanent outdoor exposure


Best Suited For:

Remote sites needing an all-in-one enclosure with built-in NVR, PoE, and remote management.
